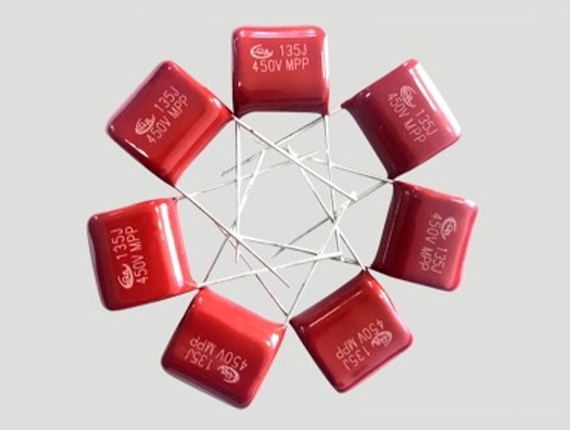

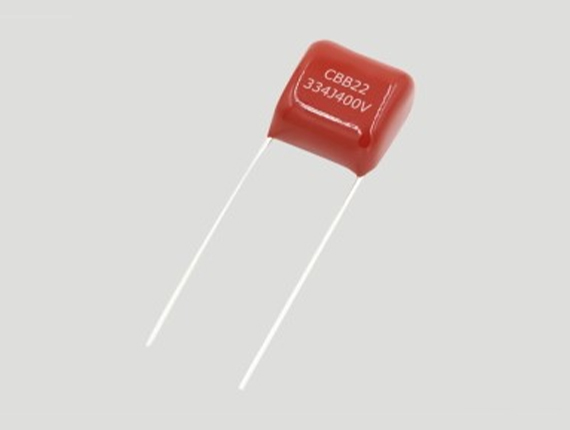

CBB21(MPP)型金属化聚丙烯膜介质直流包封电容器

  • 所属分类:电容器
  • 浏览次数:7243次
  • 发布日期:2016/7/11
  • 概述
(1) Dielectric: Polypropylene Film
(2) Electrodes: Aluminum Metalaization
(3) Winding: non-inductive type
(4) Leads: CP Wire
(5) Outer coating: Flame retarding epoxy resin
(1) 損耗因素低,絕緣電阻高
(2) 自愈性好,壽命長
(3) 阻燃性環氧樹脂包封,安全性好
(4) 電容量和損耗因素與溫度和頻率對比的穩定性高
(5) 廣泛用於高頻、直流和脈衝電路中
(6) 適用於要求體積小,性能優異的彩電S校正電路中
.........................................................................................................................................................................................................................
(1) Low dissipation factor high insulation resistance.
(2) Long life due to self-healing effect.
(3) Flame retardation epoxy resin powder coating provides safety.
(4) High stability of capacitance and DF versus temperature and frequency.
(5) Widely uesd in high frequency.DC and pulse circuits.
(6) Providing optimum performance with small size in S-correction circuits for color TV set.
引用標準 Reference Standard
IEC60384-6
使用溫度 Rated Temperature 一般型 -40℃~+85℃
高溫型 -40℃~+105℃
上限使用溫度 Upper Category Temperature +105℃ Derating ratio of rated voltage
+85℃~+105℃: 1.5% per ℃ for VR(DC)
額定電壓 Rated Voltage 100VDC,250VDC,400VDC,630VDC
電容量範圍 Capacitance Range 0.0068uf~10.0uf
電容量偏差 Capacitance Tolerance ±1%(F),±2%(G),±3%(H),±5%(J),±10%(K),±20%(M)
損耗角正切 Dissipation factor 0.1%(max) at 1KHz
耐電壓 Voltage Proof Terminal to Terminal:(at20±5℃)
1.5*VR applied for 2 sec. (cut off current 10mA)
絕緣電阻 Insulation resistance (I.R.) ≧30 000MΩ
≧10 000MΩ
CR≦0.33uf
CR>0.33uf
20±5℃,100VDC,1min
MPP 外型尺寸 Dimensions(mm)
Cap. (uF)  Size unit:m/m
R.V.
50/100VDC
250VDC
400VDC
630VDC
Size
W
H
T
P
d
W
H
T
P
d
W
H
T
P
d
W
H
T
P
d
Cap.
+1
+0.05
+1
+0.05
+1
+0.05
+1
+0.05
0.010
max
11
9
6
7.5
0.6
11
9
6
7.5
0.6
13
10
6
10
0.6
min
9.5
7.5
4.5
7.5
0.6
9.5
7.5
4.5
7.5
0.6
11.5
8.5
4.5
10
0.6
0.015
max
11
10
6
7.5
0.6
11
9
6
7.5
0.6
13
12
7
10
0.6
min
9.5
8.5
4.5
7.5
0.6
9.5
7.5
4.5
7.5
0.6
11.5
10.5
5.5
10
0.6
0.022
max
11
10
6
7.5
0.6
13
10
6
10
0.6
11
9
6
7.5
0.6
13
12
8
10
0.6
min
9.5
8.5
4.5
7.5
0.6
11.5
8.5
4.5
10
0.6
9.5
7.5
4.5
7.5
0.6
11.5
10.5
6.5
10
0.6
0.027
max
11
10
6
7.5
0.6
13
10
6
10
0.6
13
10
6
10
0.6
13
14
9
10
0.6
min
9.5
8.5
4.5
7.5
0.6
11.5
8.5
4.5
10
0.6
11.5
8.5
4.5
10
0.6
11.5
12
7.5
10
0.6
0.033
max
11
10
6
7.5
0.6
13
10
6
10
0.6
13
10
6
10
0.6
13
14
9
10
0.6
min
9.5
8.5
4.5
7.5
0.6
11.5
8.5
4.5
10
0.6
11.5
8.5
4.5
10
0.6
11.5
12
7.5
10
0.6
0.047
max
13
11
6
10
0.6
13
10
6
10
0.6
13
11
7
10
0.6
19
14
8
15
0.8
min
11.5
9.5
4.5
10
0.6
11.5
8.5
4.5
10
0.6
11.5
9.5
5.5
10
0.6
17.5
12
6.5
15
0.8
0.068
max
13
11
6
10
0.6
13
11
6
10
0.6
13
13
8
10
0.6
19
15
9
15
0.8
min
11.5
9.5
4.5
10
0.6
11.5
9.5
4.5
10
0.6
11.5
11
6.5
10
0.6
17.5
13
7.5
15
0.8
0.10
max
13
11
7
10
0.6
19
11
7
15
0.8
19
13
7
15
0.8
19
16
10
15
0.8
min
11.5
9.5
5.5
10
0.6
17.5
9.5
5.5
15
0.8
17.5
11
5.5
15
0.8
