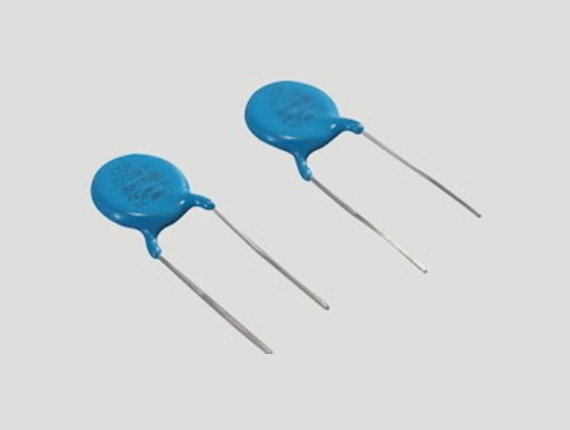

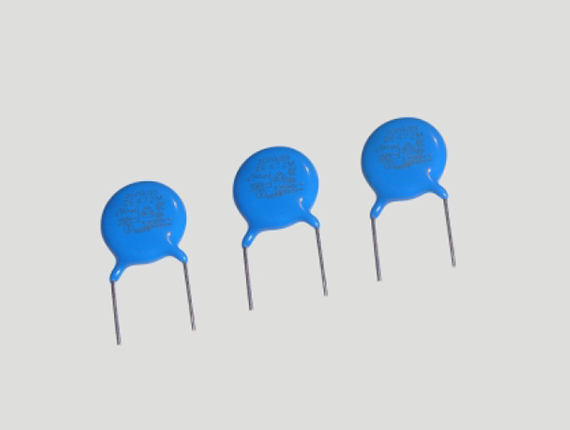

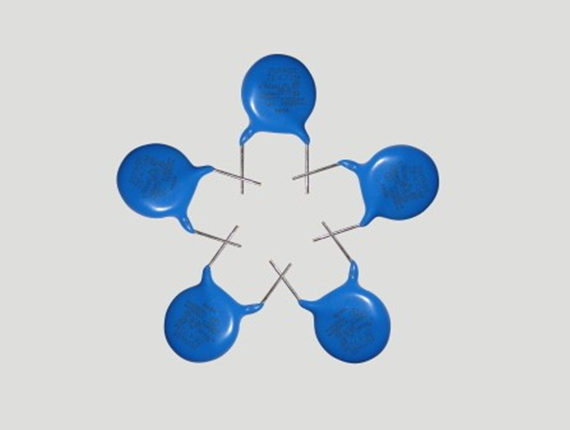

描述：
1.特点及用途(FEATURES & APPLICATIONS)
阻燃环氧树脂包封，阻燃性达UL94/V-0级适用于旁路，电线耦合，跨线等用途。
2 .技术指标(SPECIFICATIONS)
|
电容量 (capacitance)
|
100pF～4700pF
|
|
电容量允许偏差 (capacitance tolerance)
|
K(±10%),M(±20%)
|
|
使用温度 (operating temperature)
|
-25℃～125℃
|
|
额定电压 (rated voltage)
|
Y1, X1 400VAC
|
|
耐电压 （voltage proof）
|
Y1，X1 4000VAC
|
|
损耗角正切值 (dissipation factor)(tgδ)
|
tgδ≤2.5% @ 25℃,1KHz,1±0.2V rms ，Standrad atmospheric condition
|
|
绝缘电阻 (insulation resistance)(IR)
|
IR ≥ 10000MΩ @ 25℃,500VDC for 1 minute
|
|
温度特性 (temperature characteristic)
|
Y5P,Y5U，Y5V
|
|
阻燃特性（Flame Retardant Epoxy Resin ）
|
Conforming to UL94V-0 standards
|
3.电容量及尺寸对照表(CAPACITANCE & DIMENSION CHART)
|
Part Number
|
Nominal Capacitance(Pf)
|
Temperature Characteristic
|
Capacitance Tolerance
|
Plate Size
|
Dimension (mm)
|
Spacing F
|
Diameter d
|
|
Dmax
|
Tmax
|
|
DCF101KY5PG0---
|
100
|
Y5P
|
K
|
48210
|
7.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF151KY5PG0---
|
150
|
K
|
48200
|
7.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF181KY5PG0---
|
180
|
K
|
48200
|
7.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF221KY5PG0---
|
220
|
K
|
48220
|
7.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF271KY5PG0---
|
270
|
K
|
48200
|
7.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF331KY5PG0---
|
330
|
K
|
58200
|
8.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF391KY5PG0---
|
390
|
K
|
58200
|
8.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF471KY5PG0---
|
470
|
K
|
58170
|
9.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF561KY5PG0---
|
560
|
K
|
68170
|
9.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF681KY5PG0---
|
680
|
K
|
68170
|
10.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF821KY5PG0---
|
820
|
K
|
82170
|
11.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF102KY5PG0---
|
1000
|
K
|
82170
|
11.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF122KY5PG0---
|
1200
|
K
|
100210
|
12.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF152KY5PG0---
|
1500
|
K
|
115210
|
13.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF222KY5PG0---
|
2200
|
K
|
140200
|
16.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF471KY5UG0---
|
470
|
Y5U
|
K
|
48220
|
7.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF681KY5UG0---
|
680
|
K
|
52200
|
7.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF102MY5UG0---
|
1000
|
M
|
58200
|
9.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF122MY5UG0---
|
1200
|
M
|
68200
|
9.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF152MY5UG0---
|
1500
|
M
|
68200
|
10.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF182MY5UG0---
|
1800
|
M
|
82200
|
10.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF222MY5UG0---
|
2200
|
M
|
82200
|
11.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF272MY5UG0---
|
2700
|
M
|
95200
|
11.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF332MY5UG0---
|
3300
|
M
|
100200
|
13.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF392MY5UG0---
|
3900
|
M
|
115200
|
13.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF472MY5UG0---
|
4700
|
M
|
120200
|
15.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF102MY5VG0---
|
1000
|
Y5V
|
M
|
48220
|
7.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF152MY5VG0---
|
1500
|
M
|
58220
|
9.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF182MY5VG0---
|
1800
|
M
|
62220
|
9.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF222MY5VG0---
|
2200
|
M
|
65210
|
10.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF272MY5VG0---
|
2700
|
M
|
78220
|
10.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF332MY5VG0---
|
3300
|
M
|
82210
|
12.0
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF392MY5VG0---
|
3900
|
M
|
88210
|
12.5
|
5.5
|
10.0
|
0.56±0.06
|
|
DCF472MY5VG0---
|
4700
|
M
|
96210
|
13.0
|
5.5
|
10.0
|
0.56±0.06
|
抗6KV浪涌试验电容器规格表
|
Part Number
|
Nominal Capacitance(Pf)
|
Temperature Characteristic
|
Capacitance Tolerance
|
Plate Size
|
|
DCF101KY5PG0LB0(LY)
|
100
|
Y5P
|
K
|
52240
|
|
DCF331KY5PG0LB0(LY)
|
330
|
Y5P
|
K
|
58220
|
|
DCF471KY5PG0LB0(LY)
|
470
|
Y5P
|
K
|
68210
|
|
DCF102MY5UG0LB0(LY)
|
1000
|
Y5U
|
M
|
68250
|
|
DCF222MY5VG0LB0(LY)
|
2200
|
Y5V
|
M
|
73260
|
|
