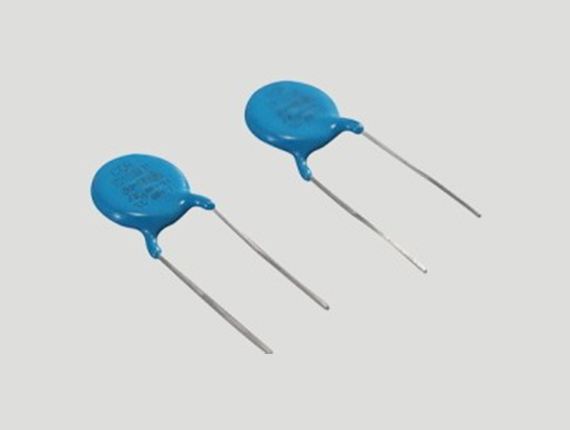

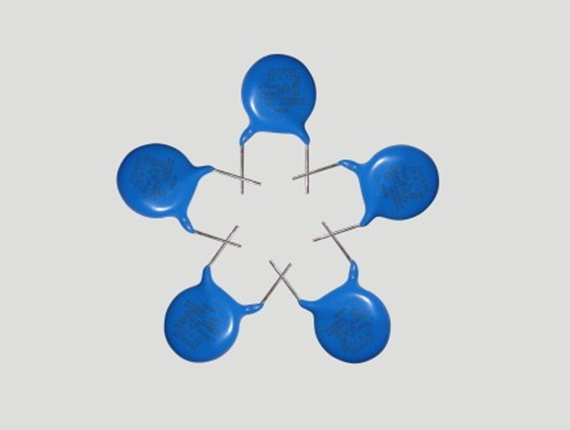

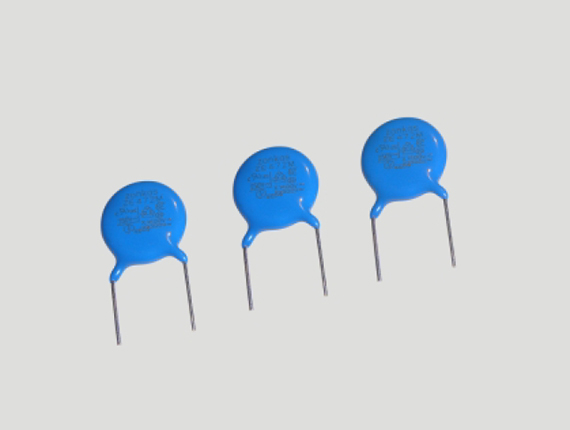

1.特点与用途
阻燃环氧树脂包封，阻燃性UL94/V-0级，适用于旁路，电线耦合，跨线等用途。
2.技术指标
| 电容量(capacitance ) | 100～10000pf |
| 电容量允许偏差(capacitance tolerance) | K(±10%),M(±20%) |
| 使用温度(operating temperature) | -25℃～125℃ |
| 额定电压(rated voltage) | 250VAC |
| 耐电压(voltage proof) | 2600VAC |
| 温度特性(temperature characteristic) | Y5P,Y5U,Y5V |
| 损耗角正切值(dissipation factor) | tgδ≤2.5% @ 25℃,1KHz,1±0.2Vrms |
| 绝缘电阻(insulation resistance) | IR≥10000MΩ @ 25℃,500VDC for 1 minute |
| 阻燃特性（Flame Retardant Epoxy Resin） | Conforming to UL 94V-0 Standards |
| Part Number | Nominal Capacitance(pF) | Temperature Characteristic | Capacitance Tolerance | Plate Size | Dimension (mm) | Spacing F | Diameter d | |
| Dmax | Tmax | |||||||
| DCF101KY5PQ7--- | 100 |
Y5P |
K |
48130 |
6.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
DCF151KY5PQ7--- |
150 |
K |
48140 |
6.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF181KY5PQ7--- |
180 |
K |
48150 |
6.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF221KY5PQ7--- |
220 |
K |
48150 |
6.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF271KY5PQ7--- |
270 |
K |
48150 |
6.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF331KY5PQ7--- |
330 |
K |
48140 |
6.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF391KY5PQ7--- |
390 |
K |
48140 |
6.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF471KY5PQ7--- |
470 |
K |
52140 |
7.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF561KY5PQ7--- |
560 |
K |
58140 |
7.5 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF681KY5PQ7--- |
680 |
K |
62140 |
8.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF821KY5PQ7--- |
820 |
K |
68140 |
8.5 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF102KY5PQ7--- |
1000 |
K |
72140 |
9.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF122KY5PQ7--- |
1200 |
K |
82140 |
10.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF152KY5PQ0--- |
1500 |
K |
95150 |
11.5 |
5.5 |
7.5/10 |
0.56±0.06 |
|
|
DCF222KY5PQ0--- |
2200 |
K |
120160 |
14.0 |
5.5 |
10.0 |
0.56±0.06 |
|
|
DCF102MY5UQ7--- |
1000 |
Y5U |
M |
52140 |
7.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
DCF122MY5UQ7--- |
1200 |
M |
58140 |
7.5 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF152MY5UQ7--- |
1500 |
M |
62140 |
8.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF182MY5UQ7--- |
1800 |
M |
73150 |
9.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF222MY5UQ7--- |
2200 |
M |
72140 |
9.5 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF272MY5UQ7--- |
2700 |
M |
82140 |
10.0 |
5.5 |
5.0/7.5 |
0.56±0.06 |
|
|
DCF332MY5UQ0--- |
3300 |
M |
88140 |
11.5 |
5.5 |
7.5/10 |
0.56±0.06 |
|
|
DCF392MY5UQ0--- |
3900 |
M |
100150 |
12.0 |
5.5 |
7.5/10 |
0.56±0.06 |
|
|
DCF472MY5UQ0--- |
4700 |
M |
100140 |
12.0 |
5.5 |
10.0 |
0.56±0.06 |
|
|
DCF102MY5VQ7--- |
1000 |
Y5V |
M |
48140 |
7.0 |
5.5 |
7.5 |
0.56±0.06 |
|
DCF152MY5VQ7--- |
1500 |
M |
52140 |
7.0 |
5.5 |
7.5 |
0.56±0.06 |
|
|
DCF222MY5VQ7--- |
2200 |
M |
58140 |
8.5 |
5.5 |
7.5 |
0.56±0.06 |
|
|
DCF332MY5VQ7--- |
3300 |
M |
68140 |
9.5 |
5.5 |
7.5 |
0.56±0.06 |
|
|
DCF392MY5VQ7--- |
3900 |
M |
78140 |
11.5 |
5.5 |
7.5 |
0.56±0.06 |
|
|
DCF472MY5VQ7--- |
4700 |
M |
78140 |
11.5 |
5.5 |
7.5 |
0.56±0.06 |
|
|
DCF682MY5VQ0--- |
6800 |
M |
105160 |
13.5 |
5.5 |
10.0 |
0.56±0.06 |
|
|
DCF103MY5VQ0--- |
10000 |
M |
120150 |
15.0 |
5.5 |
10.0 |
0.56±0.06 |
|
